Home » Shop » Toyota Hilux KZN165R 1KZ-TE – Piston Set (No Valve Reliefs)
1KZ-TE piston set without valve reliefs, no valve relief pistons for 1KZ-TE engine.

Toyota Hilux KZN165R 1KZ-TE – Piston Set (No Valve Reliefs)

Original price was: $780.35.Current price is: $734.45. Includes GST

Part number: 4DP2012

Piston Set

- +
SKU: 4DP2012-1 Categories: , Tags: , , , , , , ,
,
Product Enquiry

Toyota Hilux KZN165R 3.0 Lt Diesel, Engine: 1KZ-TE

Piston Set

Suits: Pistons without valve relief cut-outs

Includes:

  • 4 x Pistons
  • Set of Pins and Circlips

* Does not include rings
Available sizes (select from options): STD, 0.50mm oversize, 1.00mm oversize

Important Identification Guide:

The 1KZ-TE engine uses two different piston designs depending on the cylinder head type:

  • Pistons without valve reliefs – used with cylinder heads that have recessed valves
  • Pistons with valve reliefs – used with cylinder heads that have flush valves

This listing is for the pistons without valve relief cut-outs.
Please compare your existing pistons with our product image before ordering to ensure correct fitment.

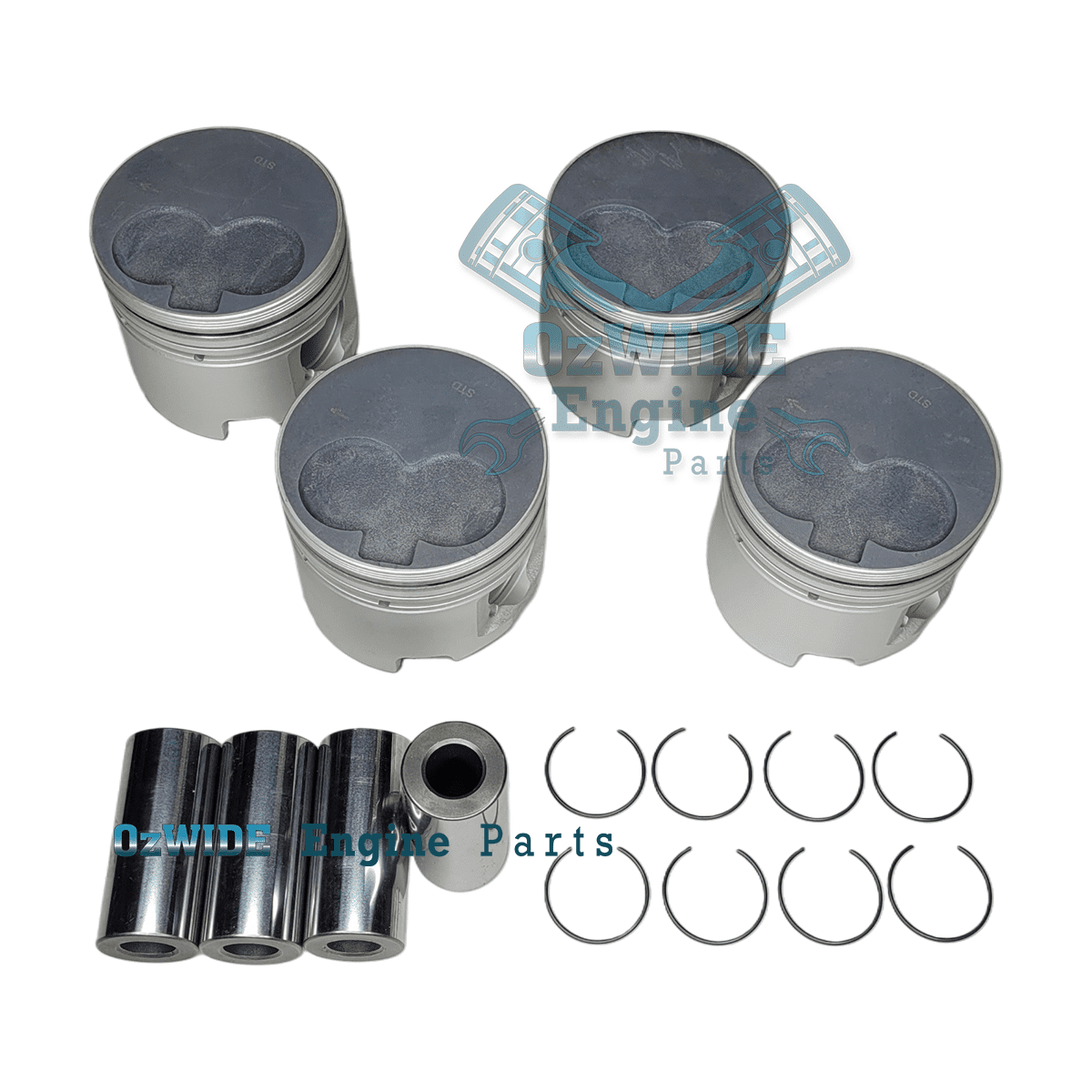

Toyota 1KZ-TE 3.0 Lt pistons with no valve relief cut-outs.

Product Specifications:

  • Head Type: Clover Leaf (without valve reliefs)
  • Compression Height: 45.70mm, -2.50mm
  • Suits Ring Widths:
    • Top: 2.00mm Half Keystone
    • 2nd: 2.00mm
    • Oil: 3.00mm
  • Alfin Insert: Yes
  • Oil Gallery Cooling: Yes
  • Head Treatment: Anodized Crown
  • Bore Size (Standard): 96.00mm

* Rings are not included. Compatible ring part numbers:
RS-1KZ-TE, CR1019, 35937

Suits:

  • Toyota Hilux KZN165R 3.0 Lt Diesel SOHC 8 valve, 12/1999 to 04/2005 — Engine: 1KZ-TE
Part no:
  • 4DP2012

* Picture/s are for illustration purposes only.

Product Inquiry

Need help with a product or technical question?
Fill out the form below to inquire about product details, stock availability, or any technical assistance you might need.

Please note:

  • We aim to respond within one business day (often the same day).

  • To assist with product or technical inquiries, we may require your vehicle’s registration number.

  • By submitting, you consent to be contacted via email or phone.

Name
Please let us know your Vehicle Registration No & State, or VIN number to help us with your inquiry.
=

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Weight 5.1 kg
Dimensions 32 × 24 × 17 cm
Piston Size

, ,

Make Model Year Engine Info Series
Make Model Year Engine Info Series
Toyota Hilux 1999 1KZ-TE 3.0 Lt Turbo Diesel 4 Cyl SOHC 8v KZN165R
Toyota Hilux 2000 1KZ-TE 3.0 Lt Turbo Diesel 4 Cyl SOHC 8v KZN165R
Toyota Hilux 2001 1KZ-TE 3.0 Lt Turbo Diesel 4 Cyl SOHC 8v KZN165R
Toyota Hilux 2002 1KZ-TE 3.0 Lt Turbo Diesel 4 Cyl SOHC 8v KZN165R
Toyota Hilux 2003 1KZ-TE 3.0 Lt Turbo Diesel 4 Cyl SOHC 8v KZN165R
Toyota Hilux 2004 1KZ-TE 3.0 Lt Turbo Diesel 4 Cyl SOHC 8v KZN165R
Toyota Hilux 2005 1KZ-TE 3.0 Lt Turbo Diesel 4 Cyl SOHC 8v KZN165R
