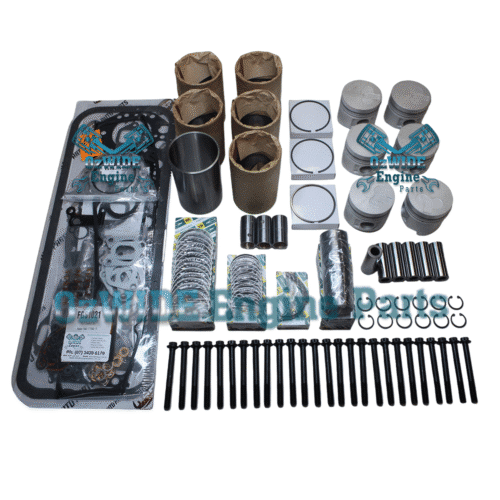

Nissan Patrol GU 4.2 Lt Turbo Intercooled, Engine: TD42Ti

Engine Rebuild Kit

Includes:

• 6 x Semi-Finished Liners
• Piston Set in STD Size
• Ring Set in STD Size
• Conrod Bearings in STD Size
• Main Bearing Set in STD Size
• Thrust Washers
• Camshaft Bearings
• Pin Bushes
• Full Gasket Set
• Head Gasket 1.25mm
• Rear Main Seal Housing
• Head Bolt Set

Note: This high quality engine rebuild kit will be supplied all in Standard Size (STD).
Other sizes are available on request. Please phone to confirm available sizes.

Semi-Finished Vs Finished Liners

Semi-finished liners are the preferred and best practice when rebuilding your engine to ensure the perfect clearance.
If the parent bore is out-of-round a finished liner should NOT be used.
Fitting a finished liner to a distorted bore will result in a out of round bore.
When a semi-finished liner is installed into the cylinder block the liner is then machined to achieve the correct clearance while maintaining a perfect parallel bore.

Specifications:

Pistons:
Size: STD
Pin Size: 30.00mm x 80.00mm
*Alfin insert, Oil gallery cooling

Alfin inserts are commonly used on diesel engines to reduce ring groove wear, which in-turn increases engine and piston life.

Liners:
Liner Grade: Semi -Finished
Liner Length: 164.00mm
Liner Outside Diameter: 99.00mm
Flange Diameter: 105.00mm
Flange Depth: 5.00mm

Brands:
Brands supplied will depend on our current stock levels at time of ordering.
Brands typically supplied with our rebuild kits and not limited to are:

• Pistons and Liners – Arco/Nason, Teikin, JCC or Hypatec
• Rings – Arco, RIK, NPR, Grant, TP or Hastings
• Bearings – NDC, ACL, Taiho, TDC, King or LLE
• Gaskets – NEP, Ajusa, GTorque or Permaseal
• Head bolts -NEP or Ajusa

Suits:

• Nissan Patrol GU 4.2 Lt Turbo Intercooled Diesel 11/2002 to 09/2007 Engine: TD42Ti
• At checkout under order notes, please let us know the build date month & year, VIN or Registration Number

Part no:

• ERK-TD42Ti-SF

* Picture/s are for illustration purposes only.
